The Wedge
The Rotor Blade .Wedge
Helicopter Track & Balance
Rotor Smoothing Technology

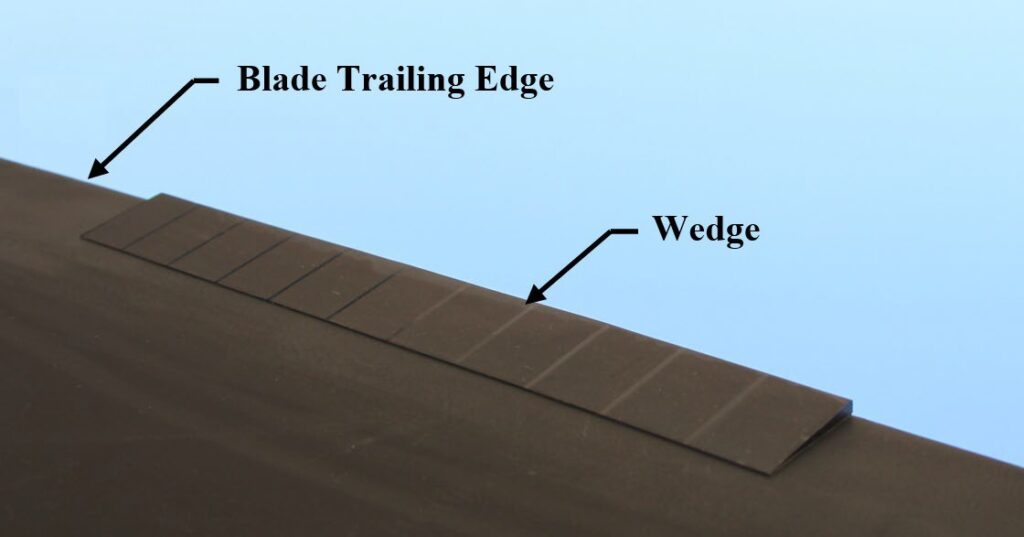

The field installable rotor smoothing wedge
provide a simpler and more accurate method for rotor blades track & balance adjustment compared to conventional trim tabs and or trim tab bending.
Superior Rotor Smoothing Wedge System for the Helicopter Community
Better Adjustment Accuracy & Fewer Tracking Flights
Maintenance Made Better
7 Actively Supported Helicopter Platforms
2 Million+ Wedge Flight Hours
The Wedge Advantage
- Reduce Rotor Vibration
Reduce rotor and airframe vibration by achieving a more accurate blade tracking level.
- Simplify Track & Balance
Replace trim tab bending to reduce track and balance maintenance time, tracking flights, process complexity, and recurring frequency.
- Simplify Tab-less Blades Tracking
Add instant trim tab to new tab-less blades.
- Eliminate Trim Tab Bending & Drift
Eliminate potential blade damage from trim tab bending. Wedges are not susceptible to tab angle drift over time and use.
- Easy
The wedge can be installed and removed by flight line mechanics quickly, in the field, and without any special tools.
